 Interpolation (included in  An_aadf_pitch_estimator)

We estimate a peak situated ideally between estimated values, and will be closer of an integer value depending of the integer value situated in the other side of the value.

a

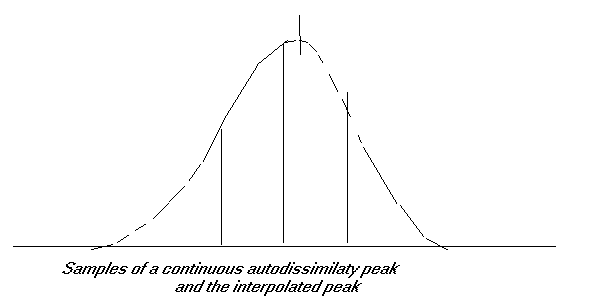

Autodissimilative peak in the variable tau.

The exact function or curve of a ADA peak is unknown and we used empirically round peaks as a sinus lobe , a parabola or sinc (sin (x) divided by x).

The number of points depend on how smooth is the peak and this smothn3ss depends on the frequency content of the signal. Usually we take 3 or 5 points to evaluate the intermediate supposed peaks. For example, in our program ESCALA written in C++ we used successfully this algorithm, which we also translate to VisualBasíc:

diperpro = sperpro - perpro - 1:
dif = aradfi - sradfi:
if (dif>0) then
    su = aradfi - autodis:
Else:
    su = sradfi - autodis:
    end if
if (su>0)
      d =(dif*32)/su:
      if (diperpro > 0) then
         d = d + (diperpro*32):
         end if
      e = abs(dif)/2:
Else
      d = 0:  e = 0:
      end if


diperpro = sperpro - perpro - 1:
dif = aradfi - sradfi:

if (dif>0) su=aradfi-autodis:
Else: su = sradfi - autodis:

if (su>0)
   {
   d=(dif<<5)/su:
   if (diperpro>0)
           d+=(diperpro<<5):
    e=abs(dif)>>1:
    }
Else
   {
   d = 0: e = 0:
   }
Visual Basíc
 C ++

What we do is to use the maximum value and the 2 values around it considering it to be 2 samples of an exact with infinite resolution peak. Since we know 3 points of a parabola we can find the situation of the maximum of this parabola and this is but we do: estimating real values of tau intermediate between the integers points of tau.  See also some considerations on the concept of peak (pico).

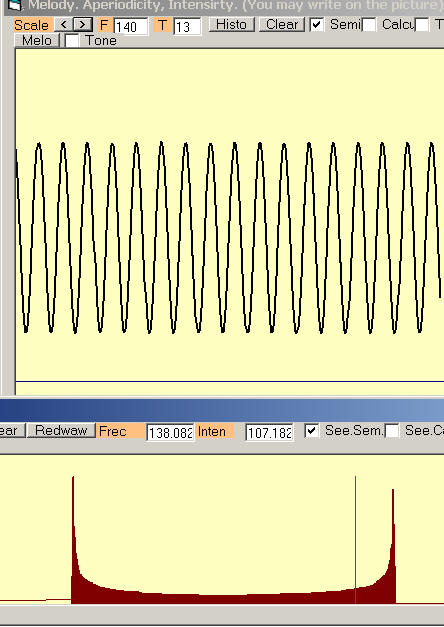

See the smoothness of this interpolation in the figure, where a vibrato es estimated and its histogram calculated.

The vibrato is generated artificially with about half semitone in pitch oscillation.

Hear it.

But there are other strategies for interpolation. here are some:

1. Fractional situation of calculation moment.

If we consider fractional t, that is, a t between samples, by admitting a linear curve (straight) between samples, any ideal sample will be a weighted mean between the neighbors.; and the weight will be be inversely proportional to the relative distances to each.

For fractional t, at temporal distance e (0<e<1)from the previous, the weighted will be 1-e, and e, their sum being 1. As these weight affect to each sample twice, one for each ideal sample, each sample in the window will have both weighs, that is, each sample will appear in the norm once and with its actual value. Except the extreme sample that will appear only once. with the already seen coefficients.

The gradual displacement of the window over t will contemplate the also gradual vanishing of the first samplke and the consequent appearing of the one next to the last.

We know therefore the value of a discrete window in any real value of t, coincident or intermediate between samples.
